Electronic Shutter vs Mechanical Shutter: Which Performs Better?

What happens inside your camera each time you press the shutter button? It is my duty to disappoint you that no kaleidoscope exists there. However, we view the camera’s “organs” from a technical perspective and discuss everything from burst photography to the quality of each frame. Besides this, it is relevant to touch on the electronic shutter vs mechanical shutter struggle, because it affects how you shoot. After this article, you will figure out about difference to use your camera to the full.

Don’t feel like reading the whole breakdown? We’ve pulled together a quick summary below.

Key Takeaways

• Core Mechanics. A mechanical shutter relies on physical curtains moving in front of the sensor, while an electronic shutter uses the sensor’s own circuitry to start and stop exposure.
• Electronic Advantages. This mode is the best choice for total silence, zero mechanical wear on the camera, and achieving extreme burst speeds of up to 60fps.
• Mechanical Reliability. This remains the standard for flash photography and high-speed lateral motion (like racing cars), where electronic modes might cause “rolling shutter” distortions.
• The Hybrid Path (EFCS). The electronic front curtain shutter reduces vibration for static shots but can occasionally warp bokeh or create artifacts at very high speeds with specific lenses.
• Lighting Obstacles. Artificial light often causes “banding” or visible strips in electronic modes; always test both modes in gyms or offices to find the best balance.
• Sensor Readout Speed. Distortion levels vary between camera models; a flagship with a “stacked” sensor will handle movement much better than an entry-level device.

Overview of Mechanical and Electronic Shutter Systems

The question of shutters concerns how the camera controls the exposure of its sensor. A mechanical shutter uses physical curtains. They open and close in front of the sensor. An electronic shutter controls exposure entirely through the sensor electronics. Moreover, mechanical vs electronic shutter discussions help photographers. Interestingly, some cameras also offer a hybrid option. This is known as the electronic front curtain shutter (EFCS).

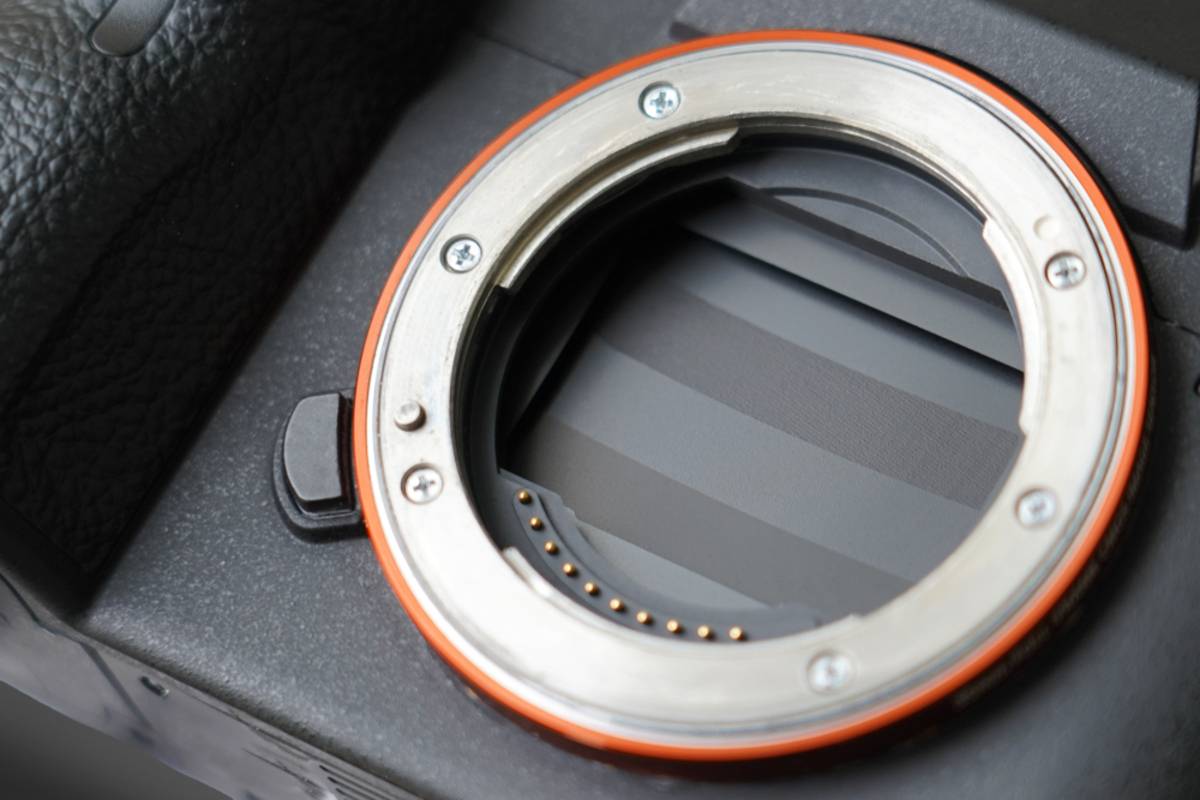

Mechanical Shutter Functionality

The mechanical vs electronic shutter discussion starts at the hardware level. In a mechanical system, two thin curtains travel across the sensor in sequence. Exposure begins when the first curtain opens and finishes when the second curtain shuts. This design saw many improvements over the decades.

For this reason, mechanical shutters are known for their reliability and consistent performance under any lighting conditions. They produce almost no electronic noise and lead to a predictable result. Yet mechanical shutters possess powerful limits too. Every shot produces sound and vibration. This interferes with work at weddings, concerts, or wildlife sessions.

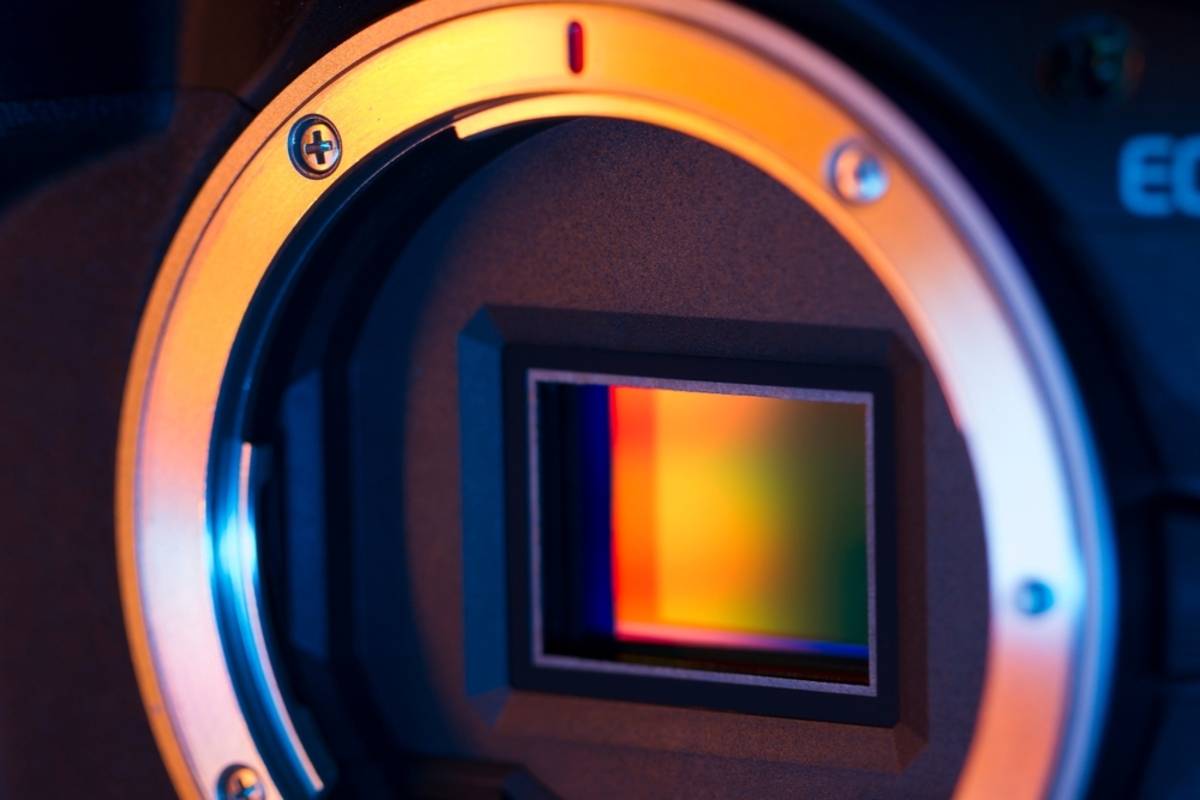

Exploring Electronic Shutter Technology

The mechanical shutter vs electronic shutter comparison becomes especially interesting when you look at the possibilities from a full move to electronics. In fact, people consider this a leap forward. People often left their mechanics behind and adopted the latest tech. This is for a reason. Instead of physical curtains, an electronic shutter reads data from the sensor row by row. It activates and deactivates individual pixels in sequence.

1. Silent work. No mechanical sounds or vibrations;
2. Zero mechanical wear. The camera resource does not have a limit on the shutter “mileage”. This extends the device life;
3. Higher shutter speed values. Sometimes up to 1/32000 s. This helps for wide-aperture optics in bright light;
4. Blackout-free photography. The image in the viewfinder does not break with a black frame at the moment of the shot. Now you can hold the object in focus without a break.

High burst photography speeds range from 20 to 60 frames per second on modern mirrorless cameras. Such an amount of material usually needs batch image editing to pick and process the best moments fast. However, the “rolling shutter” effect is the back side. Unlike parts of the sensor, which receive exposure with a minimal delay. Objects in dynamics appear distorted. The sensor readout speed is the main factor here. This metric varies by device model.

Introduction to Electronic Front Curtain Shutter (EFCS)

The discussion between fans of electronic and mechanical shutters often ends with a handshake on the “EFCS” (electronic front curtain shutter) topic. This system is a hybrid. It uses an electronic signal to start the exposure and a mechanical curtain to end it. It can reduce vibrations compared to a fully mechanical shutter. It avoids some problems of “rolling shutter” at the same time. Plus, EFCS performs best in photographing static or slowly moving objects under controlled conditions.

One single minus appears here. Sometimes, at very short exposures, EFCS creates barely visible artifacts. This happens especially with wide-aperture telephoto lenses. Then you must enhance AI to fix small defects and bring the image clarity to the ideal. In addition, do not forget to test your specific camera from various angles before making EFCS the default setting.

Key Performance Differences Between Shutter Types

The photographer decides to move to the electronic shutter or stay on the mechanical one. Practice decides everything. So, the specialist must care about adaptation to light, object speed, and even ethical norms of the environment (for example, during the photography of ceremonies). Every system behaves differently in shooting conditions.

Feature	Mechanical	Electronic	EFCS
Noise	Audible click	Silent	Minimal
Vibration	Present	None	Reduced
Max shutter speed	~1/8000s	Up to 1/32000s	~1/8000s
Rolling shutter risk	Low	Moderate-High	Low
Flash sync	Full support	Limited	Partial
Burst rate	Moderate	High	Moderate

Did you decide to go to nature? Silence must be your primary priority. So, the electronic shutter helps you. However, you need flash synchronization, or you shoot in bright sun with fast lateral movement? The mechanical shutter still holds an advantage. Sometimes this is not enough. You want the frames to be perfectly polished at the post-production stage. As a variant, you can automate the process of processing. Use software tools or artificial intelligence, for example, Luminar AI.

Impact on Image Quality and Artifacts

The choice of the right artifact continues the electronic vs mechanical shutter opposition. For example, banding is common. This means visible strips appear on the image during photography with artificial light of certain frequencies. It is already mentioned above that photographers with an electronic shutter try to prevent this. The problem lies in the row-by-row readout.

In the end, work on exposure and color continues in post-processing. Regardless of how you fixed the frame, Luminar Neo tools let you achieve the necessary accuracy and detail much faster. This lets you move routine technical correction to intelligent algorithms. So the photographer has more space for the creative process.

Common Issues and Limitations of Each Shutter Type

No system is without flaws, so the choice of a shutter is always a search for balance. The mechanical shutter, despite its reliability, has a limited resource (usually from 100,000 to 400,000 actuations). It can negatively influence clarity in macro photography.

An electronic shutter lets you shoot completely silently, though it is the most vulnerable to distortions. This becomes evident when photographing fast objects. Wings of birds in flight can look unnaturally bent, and propellers of planes turn into strange, broken arcs. You received such a dynamic but technically imperfect shot? Sometimes it is better to move the accent from documentary accuracy to art.

1. Work with flashes and studio equipment: often requires a move to the mechanical shutter. Many cameras limit the synchronization speed or block triggers in full electronic mode.
2. Bokeh features in EFCS mode: when using a hybrid front curtain with wide-aperture optics at very short exposures, the blur zone can deform. The curtain “cuts” the edges of light spots.
3. Conscious tool choice: knowledge of these small differences helps to avoid junk. You pick the exact mode to emphasize the aesthetics of a frame.
4. Resource and wear of mechanisms: every mechanical shutter has a limit of actuations (the “mileage”). After this, it needs expensive repair.

Your camera can work “under the hood”, which gives you true creative freedom. You stop the dependence on automation. You start to consciously control every frame. Experiment with settings in real conditions. Practice helps to feel the line where the art of photography begins.

Practical Recommendations for Choosing Shutter Modes

It has already been mentioned that the best shutter mode depends on the object, the environment, and your camera’s capabilities. Adapt them to your own creative tasks. Then you reach a stable, high-quality image. It is helpful to know when to use the electronic shutter to maximize these results.

The mechanical shutter is a good choice for work with flash, in conditions of complex, flickery artificial light, or for fast lateral movement. For example, during the photography of sprint athletes or cars that pass by. Instead, the electronic shutter becomes an ideal choice for silent or hidden photography. It is good for high-speed bursts in natural light or when vibration affects sharpness, for example, in macro photography or with a telephoto lens on a tripod.
